Odoo 13 in Docker Container

How to run Odoo version 13 with Docker in a container

Veikko Väätäjä

Docker containers make it easy to install and run Odoo version 13. When you already have Docker installed, you will be running Odoo 13 in a couple of minutes.

Let's begin.

Odoo version 13

You can find more details on the new features in Odoo version 13 in a separate blog post: What’s new in Odoo 13.

Now let's get to the actual contents of this article: how to run Odoo v13 in a container.

TL;DR

If you just blindly want to execute code and see what happens, the following code is for you. If you what to know what happens, please continue reading below the following code block.

docker network create --driver bridge unkkuri-odoo-nw
docker volume create --name unkkuri-db-data
docker run -d --name unkkuri-db \
 --env POSTGRES_USER=odoo --env POSTGRES_PASSWORD=unkkuri-secret-pw \
 --env POSTGRES_DB=postgres \
 --network=unkkuri-odoo-nw --mount source=unkkuri-db-data,target=/var/lib/postgresql/data \
 library/postgres:11.1
docker volume create --name unkkuri-odoo-data
docker volume create --name unkkuri-odoo-extra-addons
docker run -d --name unkkuri-odoo --link unkkuri-db:db -p 8069:8069 \
 --network unkkuri-odoo-nw \
 --mount source=unkkuri-odoo-data,target=/var/lib/odoo \
 --mount source=unkkuri-odoo-extra-addons,target=/mnt/extra-addons \
 --env POSTGRES_PASSWORD=unkkuri-secret-pw \
 veivaa/odoo:13.0

After the commands are ready, open address http://localhost:8069 in your browser.

The container basics

In this tutorial we are creating two containers:

  • One container for database. Odoo uses PostgreSQL, so we select PostgreSQL version 11.1.

  • One container for Odoo. We use Odoo version 13.0 image for this. In this blog post I use my own Docker image that has Odoo nightly updates so we will get up-to-date Odoo image. The official Docker Odoo image is currently updated quite infrequently.

You may ask why are we creating two separate containers. Could we just install the PostgreSQL and Odoo in the same container? Yes we could, but this would not be the containerized way of doing things. With containers you are supposed to separate things in own containers. This is the right pattern with containers.

You could do a very simple "hello-odoo-world" demo without persistent volumes. We want to do a real-life environment with persistent volumes. With volumes we can handle data life-cycle separate from container life-cycle. For both containers we create persistent storage volume for data. Odoo uses it for attachments and sessions, and PostgreSQL saves the database there.

Odoo image has also a volume for extra-addons -folder. It is used for local Odoo modules. Installing Odoo modules in container is not covered in this article.

You need persistence e.g. in these cases:

  • Container recreation. If you recreate the container, it loses internal data. This is why containers need persistent storage to persist state.

  • Scaling-out containers and sharing state between them. If you need to scale-out your compute power by adding multiple nodes of Odoo server containers, you need a way to share the Odoo state between running containers.

Different container systems provide different means of persisting data. Here we use Docker volumes. For Google Kubernetes Engine (GKE), Azure Kubernetes Engine (AKE) and Amazon Elastic Container Service for Kubernetes (Amazon EKS) you can use services provided by that platform.

Note: If you are experiencing missing images and ir_attachment related errors, you probably have problems with persisting the Odoo filestore. The symptoms are that everything works fine until you restart your Docker or your Odoo container. You find errors in Odoo containner logs from file ir_attachment.py saying "FileNotFoundError: [Errno 2] No such file or directory." If you have these errors, make sure you have used persistent volumes explained on this page in your container.

Network

Let's create a Docker network to connect our database and Odoo.

 docker network create --driver bridge unkkuri-odoo-nw

Database container

Fist we create a container for our database. Let's create a volume to persist database:

docker volume create --name unkkuri-db-data

Next let's create and run the database container. Here we use PostgreSQL version 11.1. Currently Odoo container uses this version for PostgreSQL client. The client and server versions should match so that all Odoo functionality works correctly.

docker run -d --name unkkuri-db  \
--env POSTGRES_USER=odoo --env POSTGRES_PASSWORD=unkkuri-secret-pw \
--env POSTGRES_DB=postgres \
  --network=unkkuri-odoo-nw --mount source=unkkuri-db-data,target=/var/lib/postgresql/data \
library/postgres:11.1
Tip: If you are using Linux or Mac, use character \ at the end of the lines to continue command on the next line.
If you are using Windows PowerShell, use character ` at the end of the line.
If you are using Windows Command Line, use character ^ at the end of the line.
p.s. Don't ask why all the environments are different...

You can check that Postgres started successfully by viewing the container logs:
docker logs unkkuri-db

You should see something like this in the end of the log:

...
PostgreSQL init process complete; ready for start up.
2019-10-05 14:13:44.128 UTC [1] LOG: listening on IPv4 address "0.0.0.0", port 5432
2019-10-05 14:13:44.128 UTC [1] LOG: listening on IPv6 address "::", port 5432
2019-10-05 14:13:44.140 UTC [1] LOG: listening on Unix socket "/var/run/postgresql/.s.PGSQL.5432"
2019-10-05 14:13:44.172 UTC [23] LOG: database system was shut down at 2019-04-16 14:37:29 UTC
2019-10-05 14:13:44.182 UTC [1] LOG: database system is ready to accept connections

Now we have the database running in a container. That was easy!

Next Odoo container

Then it is time to start Odoo. We will do it the same way so that we have separate persistent storage.

docker volume create --name unkkuri-odoo-data
docker volume create --name unkkuri-odoo-extra-addons

After this we can run Odoo:

docker run -d --name unkkuri-odoo --link unkkuri-db:db -p 8069:8069 \
--network unkkuri-odoo-nw \
--mount source=unkkuri-odoo-data,target=/var/lib/odoo \
--mount source=unkkuri-odoo-extra-addons,target=/mnt/extra-addons \
--env POSTGRES_PASSWORD=unkkuri-secret-pw \
veivaa/odoo:13.0

Some explanation of the parameters:

  • Parameter --mount is used to connect Docker persistent volumes to the container. It is recommended to use the mount and not the old --volume (-v) switch.

  • Parameter -p is used to publish port from container. We publish the port 8069 that is exposed from the Odoo image.

  • Parameter --env is used to set environment variables in the container. We set PostgreSQL password to the same we used in the database container.

The Odoo container image used here is veivaa/odoo:13.0. It is Odoo version 13.0 latest nightly build from nightly.odoo.com. You can also use the official Odoo container image library/odoo:13.0.

Let's check the logs to make sure everything is running:

docker logs unkkuri-odoo

You should see the Odoo logs and in the end you should see these lines:

2019-10-05 14:17:01,660 1 INFO ? odoo: Odoo version 13.0-20191005
2019-10-05 14:17:01,660 1 INFO ? odoo: Using configuration file at /etc/odoo/odoo.conf
2019-10-05 14:17:01,660 1 INFO ? odoo: addons paths: ['/usr/lib/python3/dist-packages/odoo/addons', '/var/lib/odoo/addons/13.0', '/mnt/extra-addons']
2019-10-05 14:17:01,661 1 INFO ? odoo: database: odoo@db:5432
2019-10-05 14:17:01,738 1 INFO ? odoo.addons.base.models.ir_actions_report: Will use the Wkhtmltopdf binary at /usr/local/bin/wkhtmltopdf
2019-10-05 14:17:01,821 1 INFO ? odoo.service.server: HTTP service (werkzeug) running on a920831b776c:8069

Now we have Odoo running in a Docker container. It's time to Odoo!

Odoo CMS- Sample image floating

Time to Odoo

We published Odoo web service in port 8069 so you can navigate to http://localhost:8069.

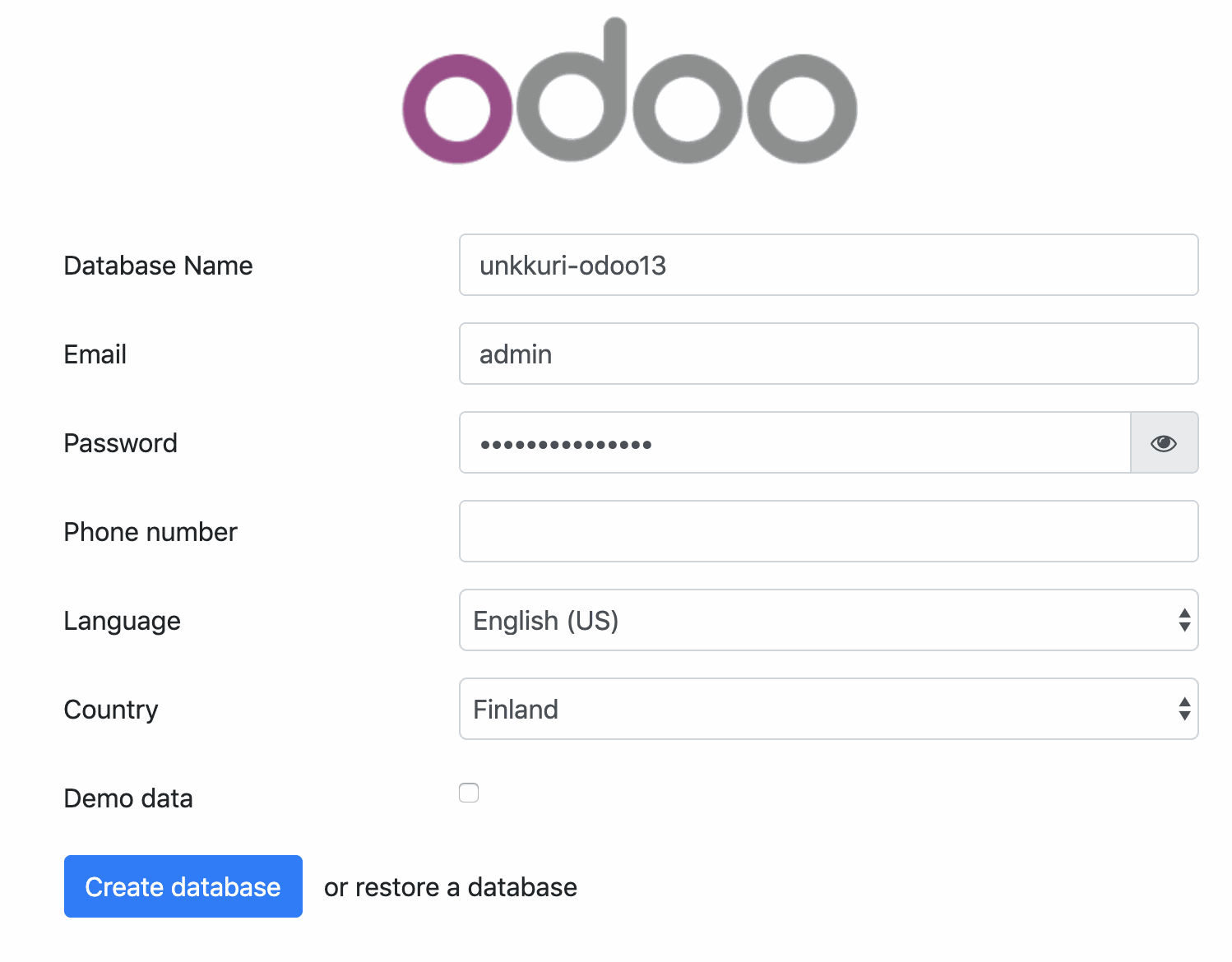

Odoo starts with a welcome page and you are able to create your Odoo database. The creation takes less than a minute. After that you can install apps and start using Odoo.

After you create the database, remember to change the master password if your Odoo web pages are accessible to other users.

Starting and stopping containers

You can start and stop the containers without losing your Odoo contents. The configuration used above uses separate Docker volumes to store data that is meant to be persistent. In Odoo container this data is filestore and addon modules.

You can see running containers with this command:

docker ps

This command shows only the running containers. If your container is not running, you can see is with -a switch that shows all containers regardless of the status:

docker ps -a

You can stop the container with this command:

docker stop unkkuri-odoo

And you can restart the container like this:

docker start unkkuri-odoo

After you restart your computer or Docker, you will have the container stopped and you need to restart both containers:

docker start unkkuri-db
docker start unkkuri-odoo

Updating or recreating the container

Many times you want to update the Odoo container with a newer version of Odoo. This can be done with these steps:

  1. Stop and remove old Odoo container.

  2. Pull newer version of Odoo image.

  3. Recreate Odoo container.

Run these steps with these commands:

docker stop unkkuri-odoo
docker rm unkkuri-odoo
docker pull veivaa/odoo:13.0
docker run -d --name unkkuri-odoo --link unkkuri-db:db -p 8069:8069 \
 --network unkkuri-odoo-nw \
 --mount source=unkkuri-odoo-data,target=/var/lib/odoo \
 --mount source=unkkuri-odoo-extra-addons,target=/mnt/extra-addons \
 --env POSTGRES_PASSWORD=unkkuri-secret-pw \
 veivaa/odoo:13.0

Note: Upgrading Odoo major version requires running migration scripts. Major version change is for example upgrading from Odoo version 12 to Odoo version 13. Upgrades inside one major version can normally be done, e.g. upgrade from Odoo version 13 nightly build 20191005 to Odoo version 13 nightly build 20191006.

When it is time to clean up

When you are done with testing, you can delete the docker containers. Do this by stopping the running containers, removing containers, volumes and network. This removes all the data you created in Odoo. To delete everything type:

docker stop unkkuri-odoo
docker rm unkkuri-odoo
docker volume rm unkkuri-odoo-data
docker volume rm unkkuri-odoo-extra-addons

docker stop unkkuri-db
docker rm unkkuri-db
docker volume rm unkkuri-db-data

docker network rm unkkuri-odoo-nw


Odoo source code can be found from GitHub here: https://github.com/odoo/odoo. You can find also the official Odoo Docker images in Odoo GitHub repository here: https://github.com/odoo/docker.

The nightly Odoo image used in this article can be found in Docker Store at https://store.docker.com/community/images/veivaa/odoo

Docker Store has the official Odoo container here: https://hub.docker.com/_/odoo/. The image is based on the Dockerfile found in odoo/docker repository. PostgreSQL image is also available in Docker Hub: https://hub.docker.com/_/postgres/.

If you have questions about how to use Odoo or container technologies in your business, I am happy to answer them and help you.

Happy Odooing!
